Internet Engineering

Web Application Architectures

MVC & MVVM Design Patterns · Multilayer Design · Microservices Architecture

Fall 2026 · Amirkabir University of Technology
@1995parham

Web Application Development

(Large) Applications cannot be developed in ad-hoc manner

We need design & architecture (software engineering)
Concept separation, Component, Relations, etc.

There are so many architectural patterns

Common architectures in web applications

MVC, MVVM, ...
Multi-layer (Multi-tier), Microservices, etc.

MVC: Model-View-Controller

Model

Does all the computational work

It contains data and performs computation on it

View (the user interface)

Show the results from model or controller

Controller (of states sequences)

Handles events/requests affecting model or view

User inputs/requests go to the controller
Available commands are determined by controller (based on model)
Tells the model what to do

Examples: MS Excel

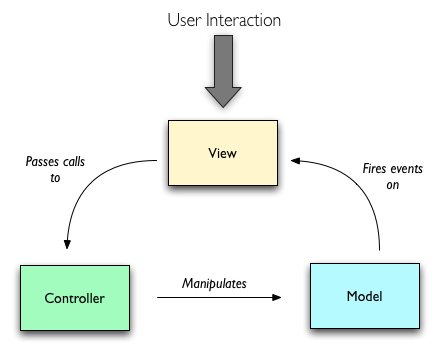

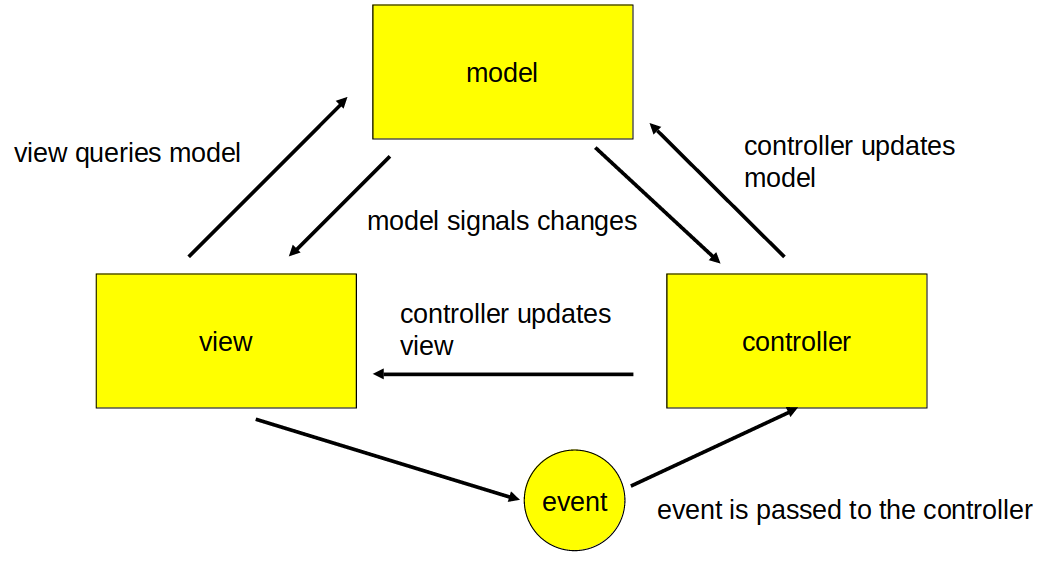

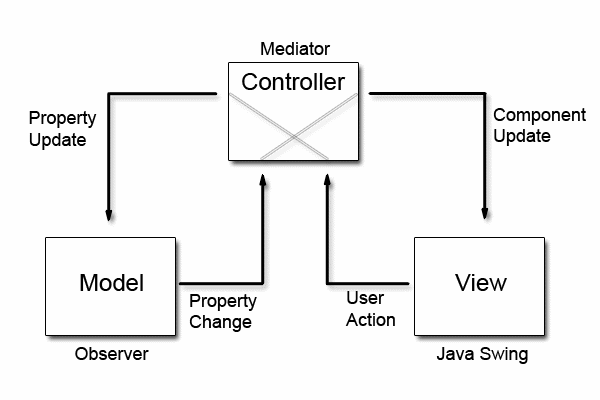

MVC Interactions?!

MVVM Design Pattern

What is the role of the controller in MVC?

Basically updates V by changes in M and vice versa

Instead of coding the C, make it automated

Automatically update M by changes in V
Automatically update V by changes in M
Two-way binding

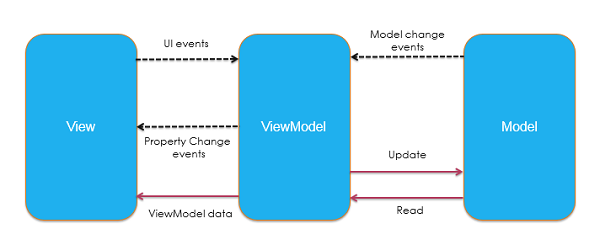

The Model-View-ViewModel pattern

The view model is a value converter
Responsible for exposing (converting) the data objects from the model in such a way that objects are easily managed and presented.

The Patterns in Web Applications

Example: MVC for whole (client + server)

Model

Database tables (persistent data)
Session information (current state data)
Server-side processing

View

HTML
CSS

Controller

Client-side scripting
Part of processing by server side scripting

Design Pattern in Modern Apps

Apply the design pattern in client side and server side separately
Client side frameworks

AngularJS 1.x: MVC (end of life since January 2022)
Angular 2+: component based, close to MVVM
React: MVVM (It's more like MVVM and the mostly feature equivalent Vue officially declares itself as MVVM.)
Vue: MVVM

Server side frameworks

Go: net/http — handlers, no prescribed pattern
Django, Rails, Laravel: MVC (Django calls the controller a "view")
Spring: MVC

Layering Approach

Common layering in web applications

Presentation Layer
Business logic Layer
Data (management/resource) Layer

These layers are purely abstractions

Not correspond to physical distribution

All layers may or may not be on the same machine

Physical layering is referred as multi-tier architecture

Layers vs. Tiers

Left: the presentation, business logic and data layers all run on one server and call each other as functions, which is one tier. Right: the same three layers run on three tiers, a browser, an app server and a DB server, joined by the network.

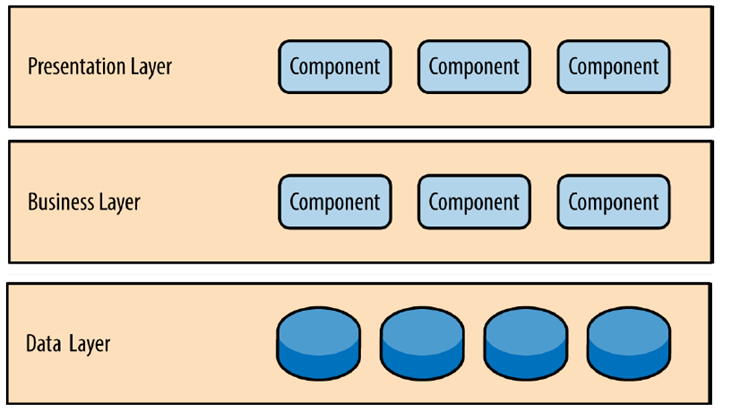

Multilayer Architecture

Presentation Layer

User interface of the application

Native (Windows Application, Android Application, etc.)
Web-Based

Displays information (processing output) which are get from the business logic layer
Gets user’s requests and pass them (with required data) to the business logic layer
Note that the user interface of web applications can be made up client side & server side codes
What is this layer in Gmail?

Business Logic Layer

The work that the application needs to do
Receives requests from presentation layer
Fetches required data from data layer
Process the request & data
Output is sent back to the presentation layer
What does this layer do in Gmail?

Data Layer

Provides data access interface to business logic

Hide data storage details
Hide heterogeneity of underlining systems

Communicating with data store systems

Database server
Messaging system
...

What is this layer in Gmail?

Traditional Multi-layer Web App

Server-side rendering: the server builds the HTML. Example: TMail (PHP).

Server-side rendering: the browser sends GET /, the server queries the database, fills an HTML template and answers with HTML that already contains the list. One request, and the page can be shown at once.

Modern Multi-layer Web App

Client-side rendering: the browser builds the HTML. Example: say-hello (React).

Client-side rendering: GET / returns an empty shell with a script tag; the browser then fetches /app.js, and the script fetches /api/inbox, which the server answers with JSON from the database. The browser builds the list itself, after three requests.

Service-oriented architecture (SOA)

The SOA-based approach helped IT professionals build applications (services) with well-defined interfaces that abstract the internal implementation details so that the consumers of these applications would only need to integrate through the interface.
The SOA-based approach allowed application developers to change their internal implementations more freely, as long as they adhered to the interface definitions.

Enterprise service bus (ESB)

Left: five systems, CRM, ERP, Billing, Shop and HR, connected point to point need ten links, n(n-1)/2, each with its own format. Right: the same five systems each connect once to an enterprise service bus that does routing, format transformation and protocol bridging, so five links.

The bus let enterprises add more and more systems without the number of integrations exploding.

Monolithic Architecture Issues

Scalability

Business logic is monolithic

Tightly coupled modules

How to scale it?

Fault tolerance

If a part of business logic is failed?

Upgrade

How to upgrade a module of business logic?

Micro-Service Idea

Complex process can be divided into multiple loosely-coupled components
Each component

Is autonomous
Provides well-defined services

Via Remote API call

Distributed application
Easy to scale

Different technologies can be used

Scaling: Monolith vs. Microservices

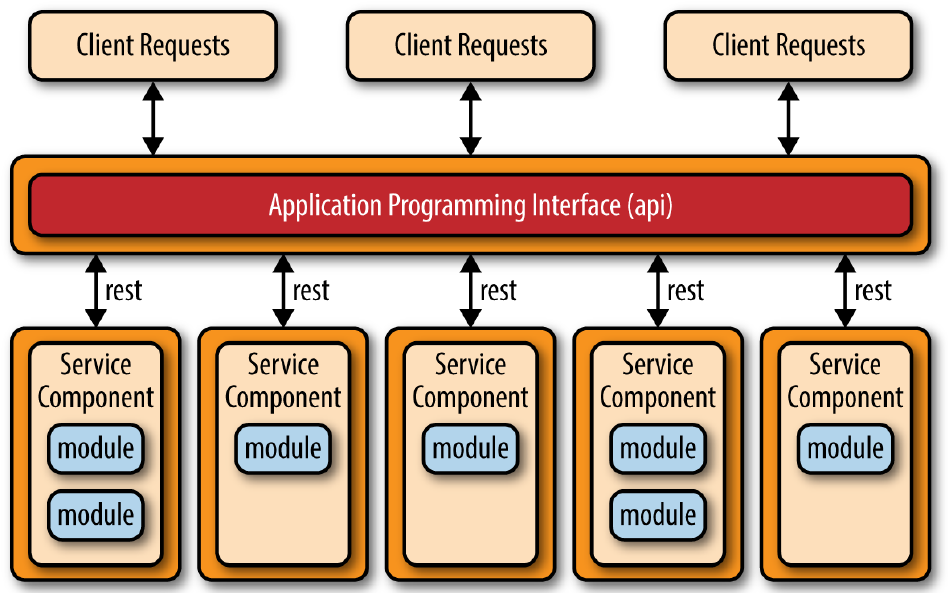

Microservices Architecture

The Four Tiers of a Microservice Application

Four stacked tiers. Client: website, mobile app, partner API. Boundary: an API gateway doing auth, routing and aggregation, the part outsiders may call. Services: Users, Orders, Payment and more, which provide business and technical capabilities and call each other. Platform: the tools every service stands on to deploy, run, discover, communicate and observe, such as containers, Kubernetes, CI/CD, service discovery, a message broker, logs, metrics and tracing.

What Makes Microservices Challenging?

Scoping and identifying microservices requires substantial domain knowledge.
The right boundaries and contracts between services are difficult to identify and, once you've established them, can be time-consuming to change.
Microservices are distributed systems and therefore require different assumptions to be made about state, consistency, and network reliability.
By distributing system components across networks, and increasing technical heterogeneity, microservices introduce new modes of failure.
It's more challenging to understand and verify what should happen in normal operation.

Transactions?

Where did you hear about them?
ACID Properties

Atomicity
Consistency
Isolation
Durability

Atomicity

Transactions are often composed of multiple statements
Atomicity guarantees that each transaction is treated as a single "unit", which either succeeds completely, or fails completely

if any of the statements constituting a transaction fails to complete, the entire transaction fails and the system is left unchanged.

Consistency

Consistency ensures that a transaction can only bring the system from one valid state to another

Isolation

Transactions are often executed concurrently
Isolation ensures that concurrent execution of transactions leaves the system in the same state that would have been obtained if the transactions were executed sequentially.

Durability

Durability guarantees that once a transaction has been committed, it will remain committed even in the case of a system failure (e.g., power outage or crash).

A Real Story 🔥

There was a micro-service architectured IoT Platform - 2018
Users can create project and each project must be created on 3 different services:
- API gateway
- X
- Y
Requests are handled by API gateway and then it calls X and Y services to create a new project on these services too. (can you tell why this approach is not right?)
Sometimes service X fail to create project and sometimes Y service isn't available to handle/response the request.
We don't know service Y is slow, or it is not working
In each of these cases system goes into unrecoverable state

What Went Wrong

The user asks the API gateway to create a project. The gateway saves it, asks X to create it and X answers ok, then asks Y and gets no answer: Y may be slow or down, and may or may not have created it. Result: gateway done, X done, Y unknown. No transaction spans the three services, so nothing rolls the first two back.

CAP Theorem

Impossible for a distributed data store to simultaneously provide more than two out of the following three guarantees:

Consistency: Every read receives the most recent write or an error
Availability: Every request receives a (non-error) response, without the guarantee that it contains the most recent write
Partition tolerance: The system continues to operate despite an arbitrary number of messages being dropped (or delayed) by the network between nodes

CAP During a Partition

Node A and node B are split by a network partition. Client 1 writes x = 2 to node A; node B still has x = 1. Client 2 reads x from node B. A CP system answers with an error, so it is not available. An AP system answers x = 1, which is stale.

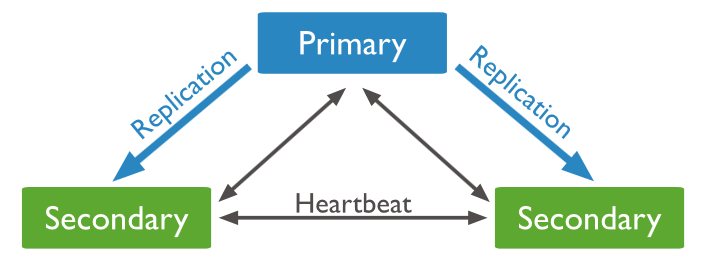

Mongo DB (CP)

MongoDB is a NoSQL database that stores data in one or more Primary nodes in the form of JSON files.
The replica set nodes in the system send a heartbeat (ping) to every other node to keep track if other replicas or primary nodes are alive or dead.

If a Primary node becomes inaccessible, then one of the secondary nodes needs to become the primary node.

Till a new primary is elected from amongst the secondary nodes, the system remains unavailable to the user to make any new write query.
Therefore, the MongoDB system behaves as a Consistent system and compromises on Availability during a partition.

Cassandra (AP)

Cassandra is a peer-to-peer system. It consists of multiple nodes in the system. And each node can accept a read or write request from the user.
Cassandra maintains multiple replicas of data in separate nodes
A situation can occur where a partition occurs and the replica does not get an updated copy of the data.

In such a situation the replica nodes will still be available to the user but the data will be inconsistent.

All updates will reach all the replicas eventually. But in the meantime, it allows divergent versions of the same data to exist temporarily. Until we update them to the consistent state.

Messaging patterns used in distributed systems

Remote procedure calls (RPC) versus shared resources
Synchronous versus asynchronous (client-server versus pub-sub)
Orchestration versus choreography

Remote procedure calls (RPC) versus shared resources

Shared resource: System 1 writes order 42 into a shared database and System 2 reads it; they never talk to each other, and the table schema is their contract. RPC: System 1 calls Payment.Charge(42, 50) as if it were local; the client stub marshals the arguments onto the network, the server stub unmarshals them and calls the procedure, and the result comes back the same way.

Synchronous versus asynchronous

Synchronous: A sends a request to B and waits while B works, until B sends the response. Asynchronous: A publishes to a broker, the broker acknowledges and A moves on; later the broker delivers the message to B and C, which A does not need to know about.

Client-server is synchronous; publish-subscribe through a message broker is asynchronous.

Orchestration versus choreography

Orchestration: an Order service, the orchestrator, calls Payment to charge, Inventory to reserve and Shipping to ship, in order. Choreography: Order publishes order.placed to an event broker; Payment and Inventory react to it; Payment publishes payment.done, and Shipping reacts to that. There is no central coordinator.

Choreography is borrowed from dance: the steps are designed in advance, and nobody conducts during the show.

Asynchronous Messages

More flexible
By announcing events, you make it easy to extend the system to handle new requirements, because services no longer need to have knowledge of their downstream consumers.
Asynchronous messaging typically requires a communication broker

An independent system component that receives events and distributes them to event consumers.

Routing by subject

A publisher sends PUB foo to the broker. The broker delivers MSG foo to the subscriber on foo and to the subscriber on foo and bar; the subscriber on bar alone receives nothing. The publisher does not know who, if anyone, is subscribed.

Solutions

EMQ (MQTT) in erlang
VerneMQ (MQTT) in erlang
RabbitMQ (AMQP) in erlang
NATS (NATS) in golang
etc.

Quality of Service

Fire and Forget
at-least-once Delivery
exactly-once Delivery
etc.

Performance Criteria

Number of Concurrent Connections
Messages per Second
Connections per Second

North-South vs. East-West

North-South traffic

In a typical enterprise platform, North-South traffic is the more sensitive and customer-facing communication flow that attracts the maximum attention from everyone.

REST
GraphQL
WebSocket

East-West traffic

Most of the time, architects and technical leads give priority to the consumer-facing interfaces and they let developers decide on the internal communication between services.

HTTP (REST)
NATS
Kafka
gRPC
